Calculation Method for Circuits in Distribution Box Systems

Circuit calculation for distribution boxes involves determining total load, applying diversity factors, sizing breakers, and verifying short-circuit and fault current ratings according to NEC and IEC standards.

Load Calculation and Planning

To design a distribution box, first identify all circuits and connected loads in the building or facility. Each circuit should be categorized by type: resistive, inductive, or capacitive, as this affects current draw and breaker selection . Sum the loads for each panelboard, switchboard, or motor control center, applying diversity factors to account for the fact that not all equipment operates simultaneously . Always include a margin for future load growth to allow for system expansion .

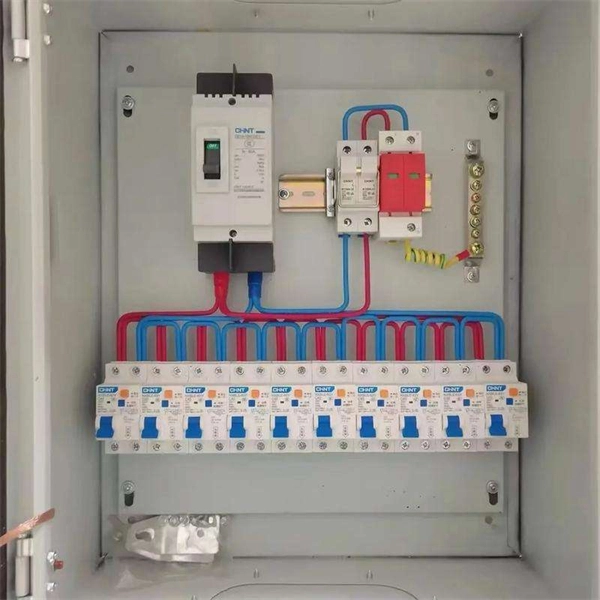

Circuit Breaker Selection

Once total loads are calculated, select MCBs, RCDs, and GFCIs as appropriate:

• MCBs protect against overcurrent and short circuits but do not detect earth faults .
• RCDs detect leakage currents and protect against electric shocks, even if the earth wire is broken .
• GFCIs are recommended in wet areas like bathrooms, kitchens, and outdoor circuits . The rated current of the breaker should exceed the calculated load but remain within safe limits. For short-circuit protection, ensure the breaker's interrupting rating exceeds the maximum available fault current, typically with a safety margin of 25% or more .

Short-Circuit and Fault Current Calculations

Short-circuit calculations are essential to prevent equipment damage and ensure safety. Steps include:

1. Gather system data: transformer ratings, line impedances, and cable characteristics .
2. Convert impedances to per-unit values and sum series impedances to find total system impedance .
3. Calculate symmetrical fault current using the formula $I_{sc}=\frac{V}{Z_{total}}$, .
4. Adjust for X/R ratio to account for DC offset and asymmetrical peak currents, which affect breaker performance .
5. Select breakers with interrupting ratings higher than the calculated peak fault current .

Compliance with Standards

Distribution boxes must comply with IEC 61439 / EN 61439 for low-voltage switchgear, ensuring safe operation under rated current, short-time withstand, and temperature rise conditions . In the U.S., NEC Articles 220, 430, and 240 provide guidance for load calculations, breaker sizing, and short-circuit protection . Proper documentation and verification of calculations are required for safety and regulatory compliance.

Practical Tips

• Use electrical distribution diagrams to map circuits, breakers, and wiring for clarity and maintenance .
• Leave extra space in the distribution box for future expansion .
• Verify calculations with software or manufacturer recommendations, especially for generators or complex systems .
• Ensure all components have marked short-circuit ratings to meet NEC and UL requirements . By following these rules, you can design a safe, reliable, and expandable distribution box system that meets both operational and regulatory requirements.
