Correct Connection Method for Fiber Optic Cables

The most reliable method for connecting fiber optic cables is fusion splicing, complemented by proper handling, connector alignment, and testing to ensure minimal signal loss.

Key Connection Methods

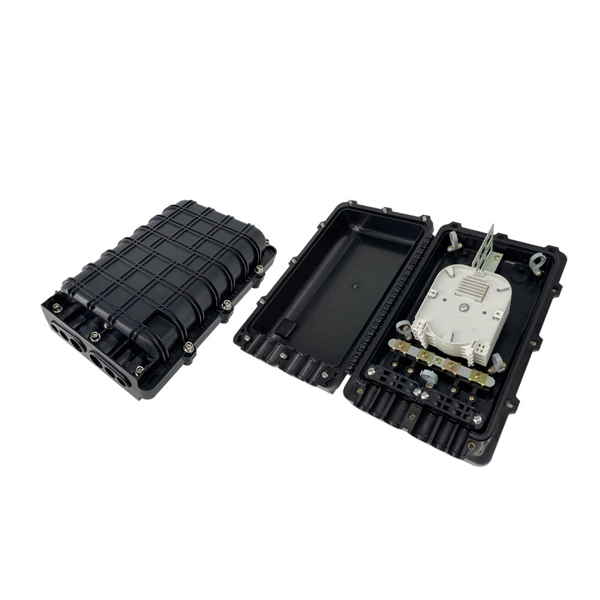

1. Fusion Splicing (Permanent Connection) Fusion splicing involves melting and fusing the ends of two fibers using an electric arc. This method provides the lowest signal attenuation (0.01–0.03 dB per point) and is ideal for long-distance or permanent installations. It requires a fusion splicer and trained personnel, and the splice points must be protected in specialized enclosures to maintain durability and performance .
2. Active Connection (Connector-Based) Active connections use fiber optic connectors (plugs and sockets) to join cables. This method is flexible and convenient, allowing easy reconfiguration, but typically results in higher light loss (10–20%) compared to fusion splicing. Proper alignment and locking of connectors are essential to maintain a stable connection .
3. Cold Splicing (Emergency/Mechanical Connection) Cold splicing uses mechanical sleeves or adhesives to join fibers temporarily. It is quick and reliable for short-term use, with typical attenuation of 0.1–0.3 dB per point. However, connections may become unstable over time, so this method is not recommended for permanent installations .
4. Non-Splicing Physical Connection Advanced physical connection methods, such as V-groove alignment with matching liquids, can achieve near 100% fusion success without splicing. These are suitable for FTTR (Fiber to the Room) solutions and specialized applications .

Best Practices for Fiber Connection

• Cable Handling: Avoid exceeding the minimum bend radius and respect the maximum pulling load to prevent physical damage .
• Connector Alignment: Ensure connectors are properly aligned and locked into ports on devices or routers .
• Testing: Use OTDRs (Optical Time Domain Reflectometers) and visual fault locators to verify signal integrity and detect breaks or imperfections .
• Cable Management: Secure excess cable with velcro straps or cable managers to prevent tension, tight loops, or interference .
• Safety: Wear gloves and safety glasses to protect against glass shards during cutting or splicing .

Installation Considerations

• Single-Mode vs Multi-Mode: Single-mode fibers are preferred for long-distance communication, while multi-mode fibers are suitable for short-range, high-speed connections .
• Environment-Specific Methods: Choose installation methods based on the environment: aerial, direct-buried, submarine, or indoor/outdoor cables .
• Device Integration: Ensure each fiber is securely connected at both ends and aligned with network devices to avoid misalignment or loose connections . By following these methods and best practices, fiber optic connections can achieve optimal performance, reliability, and long-term durability.
