Maintenance and Operation of Industrial Switches SFP

Proper maintenance of industrial switches and SFP modules ensures reliable network performance, longevity, and resilience in harsh industrial environments.

Industrial Switch Maintenance

1. Planning and Installation

• Assess Network Requirements: Determine bandwidth, latency, and scalability needs, considering future expansion to avoid costly upgrades .
• Select Appropriate Switches: Managed switches offer granular control (VLANs, QoS), while unmanaged switches provide simplicity. Ensure compliance with industrial standards like IEEE 1613 .
• Environmental Considerations: Choose switches with suitable IP ratings (e.g., IP67) and operating temperature ranges (-40°C to 75°C) to withstand dust, moisture, and temperature extremes .
• Secure Mounting: Use DIN rails or shock-resistant brackets to prevent vibrations and accidental disconnections .
• Cable Management: Employ shielded, industrial-grade Ethernet cables (Cat6/Cat6a) and secure them with cable glands, routing away from power lines or moving parts to maintain signal integrity . 2. Routine Maintenance
• Scheduled Inspections: Quarterly checks for environmental damage, loose connections, corrosion, and physical wear .
• Performance Monitoring: Use SNMP or industrial network management tools to track traffic, bandwidth, and error rates .
• Firmware Updates: Regularly apply vendor-recommended updates and security patches to maintain stability and cybersecurity .
• Backup Configurations: Periodically save switch settings to enable quick recovery after failures .
• Documentation: Maintain logs of configurations, maintenance activities, and network topology changes for troubleshooting and audits . 3. Troubleshooting Common Issues
• Inspect cables, ports, and power supplies first.
• Check VLAN configurations, firewall rules, and port states.
• Address overheating by cleaning vents, replacing fans, or relocating switches.
• Apply protective coatings in corrosive environments and validate surge protectors and UPS functionality .
• Revert firmware if updates cause instability and contact vendor support for unresolved issues .

SFP Module Maintenance

1. Understanding Industrial SFPs

• Industrial SFPs are designed for harsh environments with extended temperature tolerance, ruggedized hardware, and resistance to electrical interference .
• They support multiple interface types (100BASE-FX, 1000BASE-SX/LX/T) and are hot-swappable, allowing flexible network design .
• Reinforced internal components and protective designs help withstand mechanical stress and extreme conditions . 2. Handling and Installation
• Always handle SFPs with care to avoid static discharge or physical damage.
• Ensure proper insertion and seating in the switch ports; misalignment can cause link failures .
• Use compatible SFPs recommended by the switch manufacturer to prevent recognition or connectivity issues . 3. Preventive Maintenance

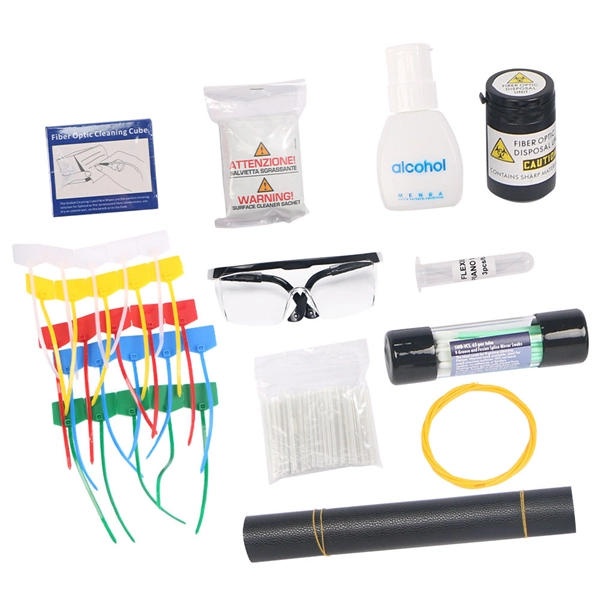

• Inspect SFPs for dust, dirt, or corrosion on connectors and clean with appropriate fiber cleaning tools.
• Monitor optical signal levels and link status to detect degradation early .
• Replace SFPs showing signs of wear or intermittent connectivity to prevent network downtime . 4. Safety and Cybersecurity
• Follow manufacturer safety guidelines to prevent personal injury or equipment damage .
• Implement industrial cybersecurity measures, including network segmentation and firewalls, to protect switches and SFPs from unauthorized access .

Key Takeaways

• Regular inspections, proper mounting, cable management, and firmware updates are essential for industrial switch longevity.
• Industrial SFPs require careful handling, monitoring, and use of compatible modules to maintain network reliability.
• Combining preventive maintenance with proactive monitoring ensures stable operation even in extreme industrial environments. By adhering to these practices, industrial networks can achieve high reliability, minimal downtime, and extended equipment lifespan.
